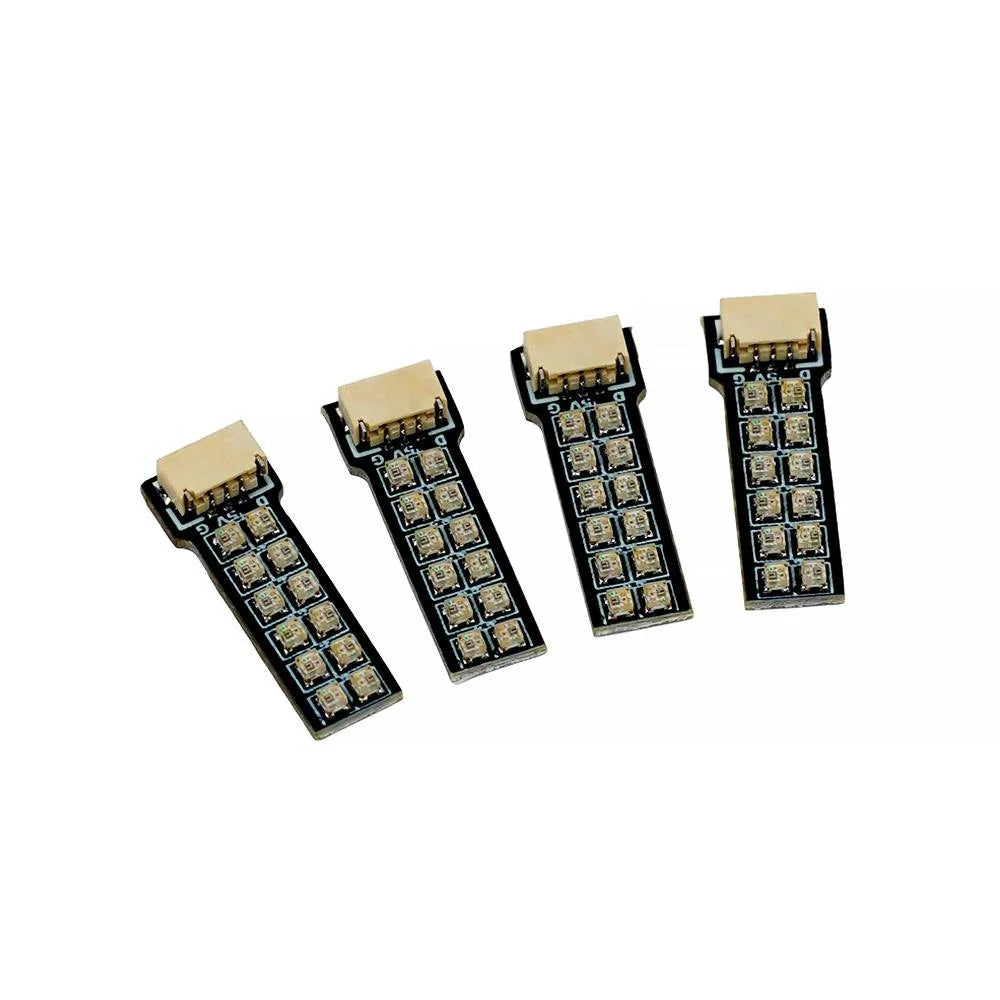

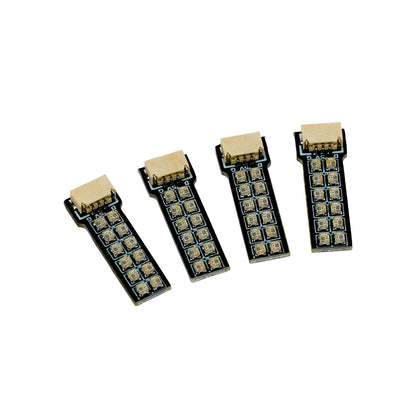

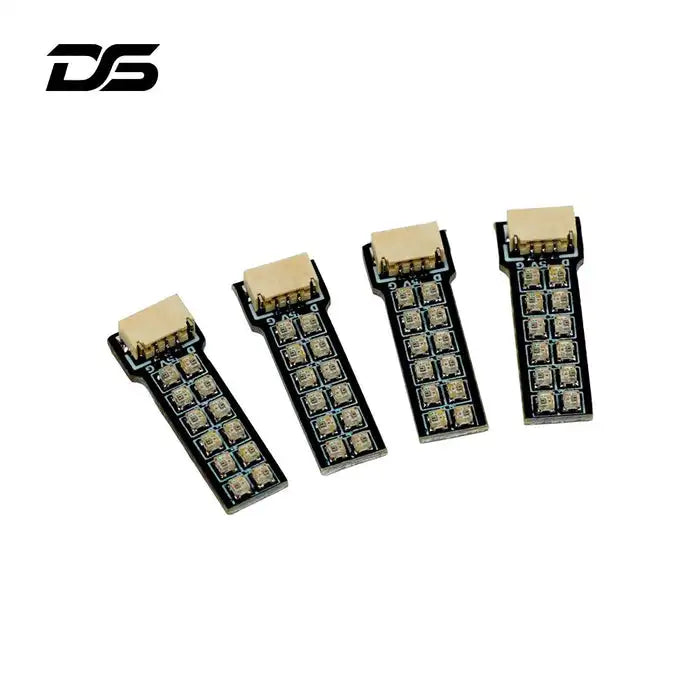

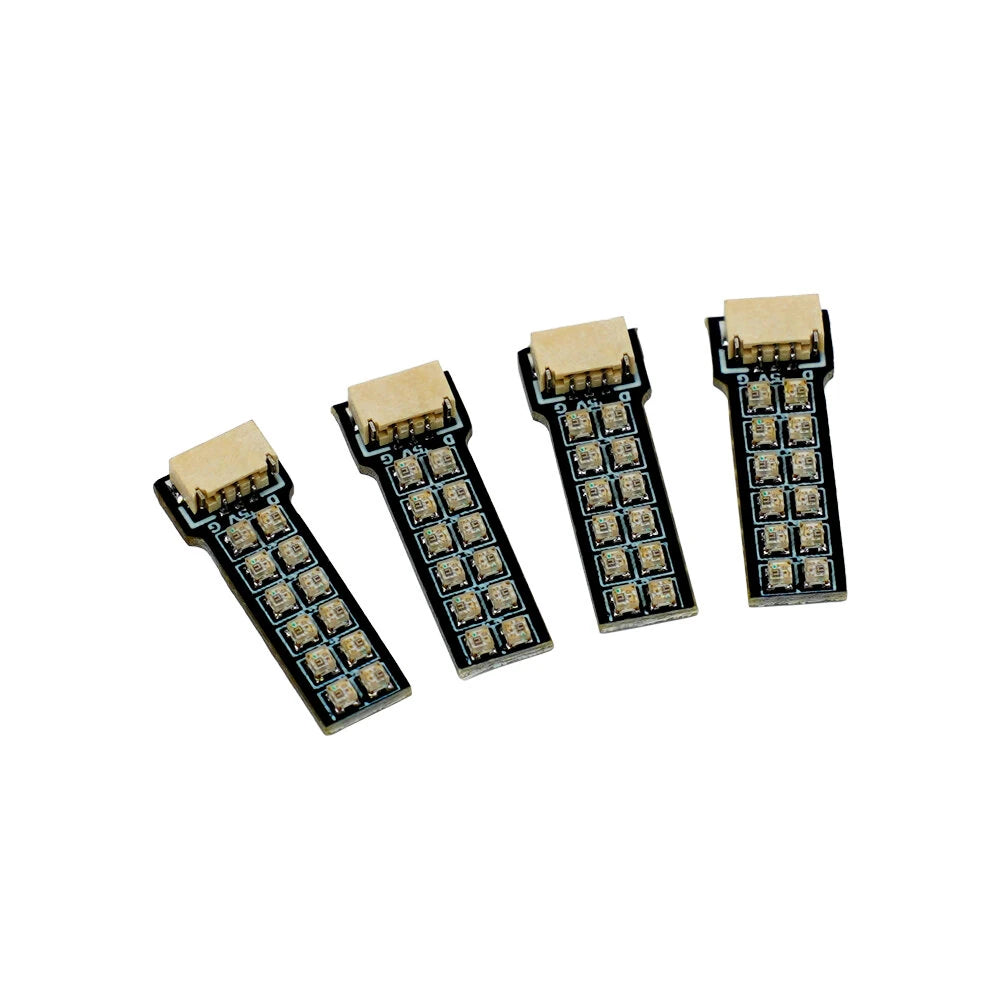

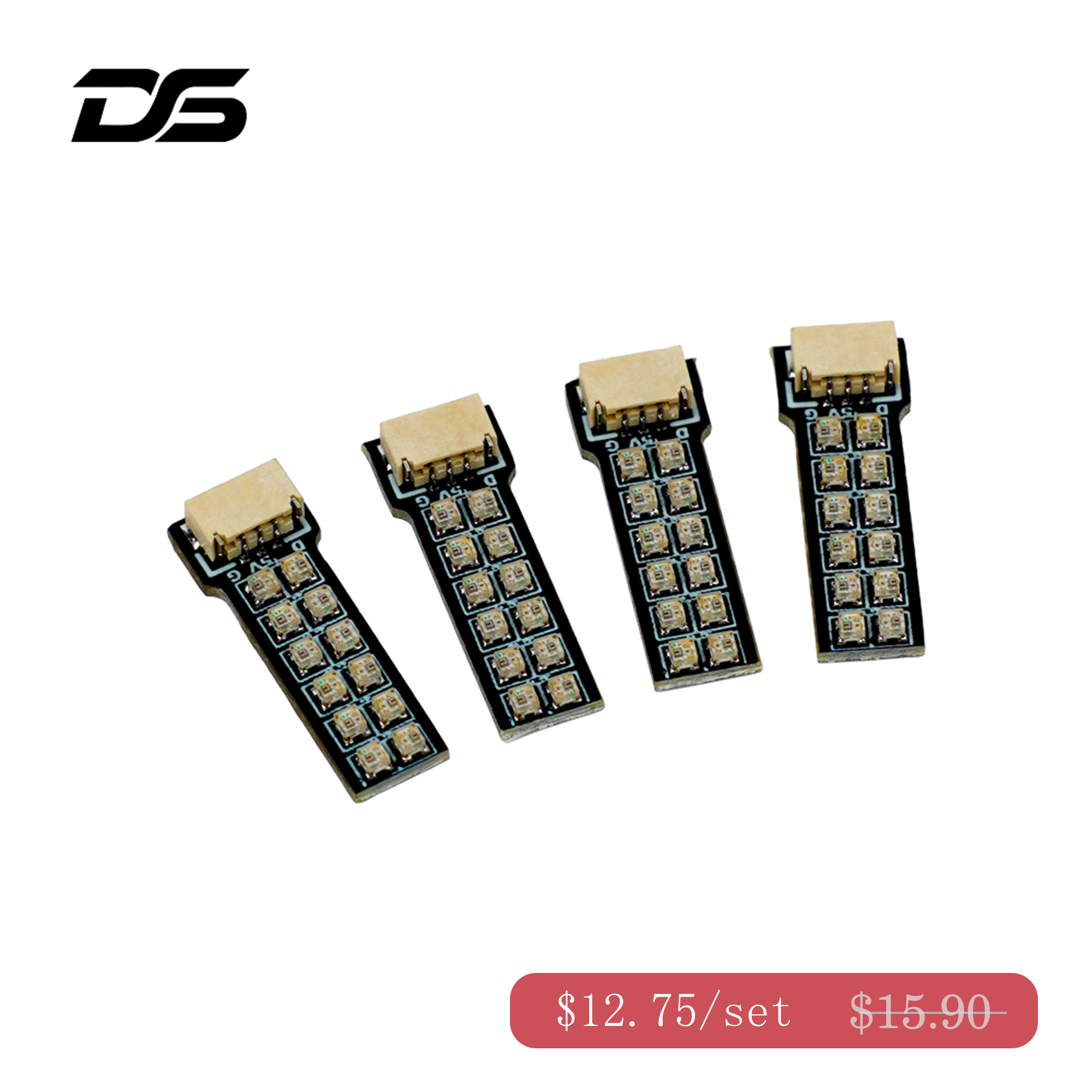

DeepSpace x LongXL — Illuminate the Skies

The ultimate lighting solution for the modern FPV pilot. This exclusive LongXL Collaborative Edition of the renowned DeepSpace PHLUX series brings industry-leading brightness, unmatched durability, and a signature aesthetic to your build.

✨ Collaboration Highlights

  • Exclusive LongXL Branding: A symbol of quality and community, designed specifically for our loyal pilots.
  • High-Intensity PHLUX Tech: 12 ultra-bright LEDs per strip for maximum visibility even in broad daylight.
  • 7-Color Quick-Switch: Cycle through Red, Green, Blue, Yellow, Cyan, Magenta, and White with a single button press or FC command.
  • Featherlight Design: Only 3.2g for the full set (Lite version), ensuring zero impact on your flight dynamics.

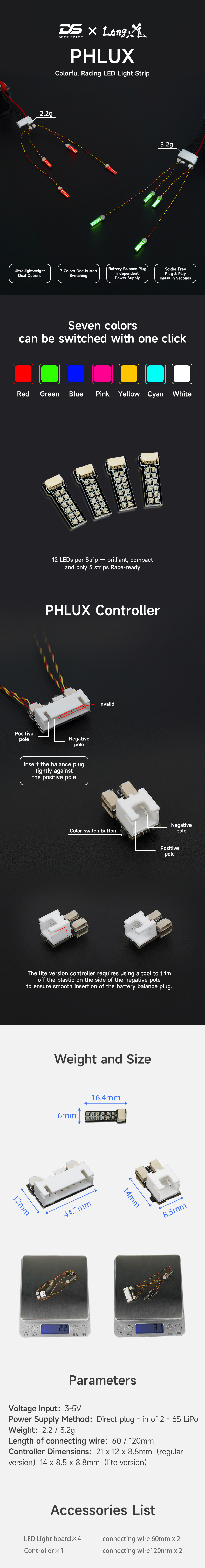

🛠️ Technical Specifications

  • Voltage Support: 3-5V Input (Compatible with 2-6S via PHLUX Controller).
  • Heat Resistance: Rated up to 105°C for high-performance racing.
  • Strip Dimensions: Ultra-slim 16.4 x 6 mm.
  • Installation: Plug-and-play with included 60mm/120mm connecting wires.

🔌 Professional Wiring & Technical Data

For the pro builder who needs precise data. The PHLUX system is designed for high-performance racing with clear connectivity and manageable power requirements.

⚡ Power & Current Draw
  • Voltage Support: 3V - 5V (Direct Strip Input)
  • Controller Input: 2S - 6S (Balance Plug)
  • Max Current Draw (White @ 100%):
    • Per Strip: ~0.72 Amps
    • Full Set (4 Strips): ~2.88 Amps
  • Note: We recommend powering via the included balance plug adapter or a 3A+ dedicated BEC.
📡 Control & Configuration
  • Pads: VCC, GND, DIN (Addressable)
  • Betaflight Setup: Enable 'LED_STRIP' in Configuration. Map 48 LEDs (12 per arm).
  • Hardware Compat: Works with any flight controller featuring an LED out pad.

🛠️ Mounting Info: Board size is 16.4mm x 6mm. Compatible with most 16x6mm TPU arm mounts or direct VHB tape application.

Package
Package: 1 Set (4 Strips + Controller)
